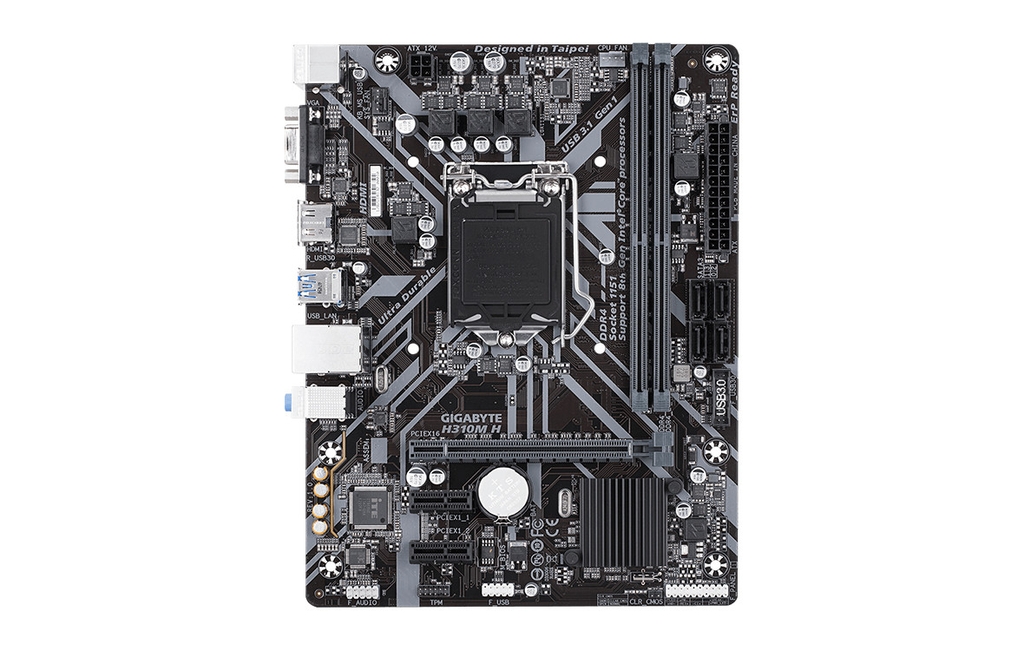

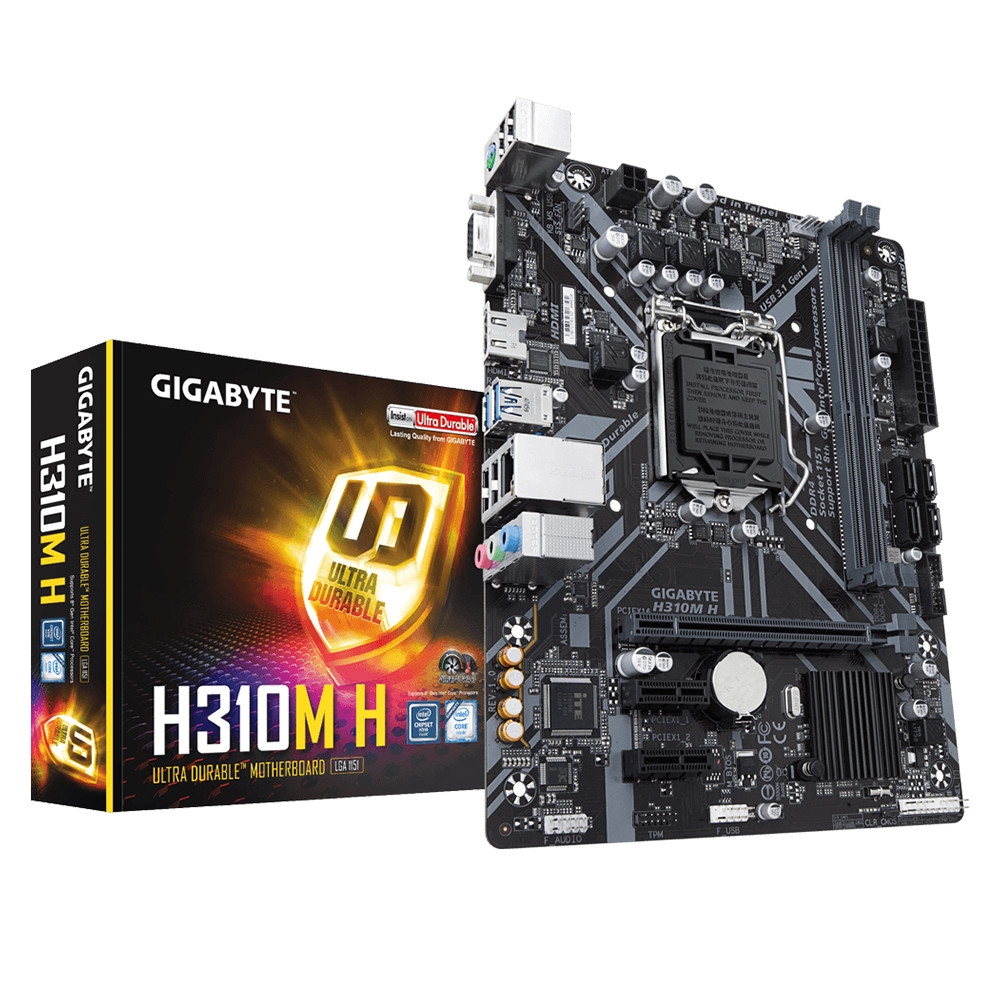

Mainboard Gigabyte H310M-H

Sản phẩm

Bo mạch chủ

Tên Hãng

GIGABYTE

Model

H310M-H

CPU hỗ trợ

Intel

Chipset

H310

RAM hỗ trợ

2 x DDR4 memory slots, support up to 32GB DDR4 2666/2400/2133 MHz

Khe cắm mở rộng

1 x PCI Express x16 slot, running at x16
2 x PCI Express x1 slots

Ổ cứng hỗ trợ

4 x SATA 6Gb/s connectors

Cổng kết nối (Internal)

1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x USB 3.1 Gen 1 header
1 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper

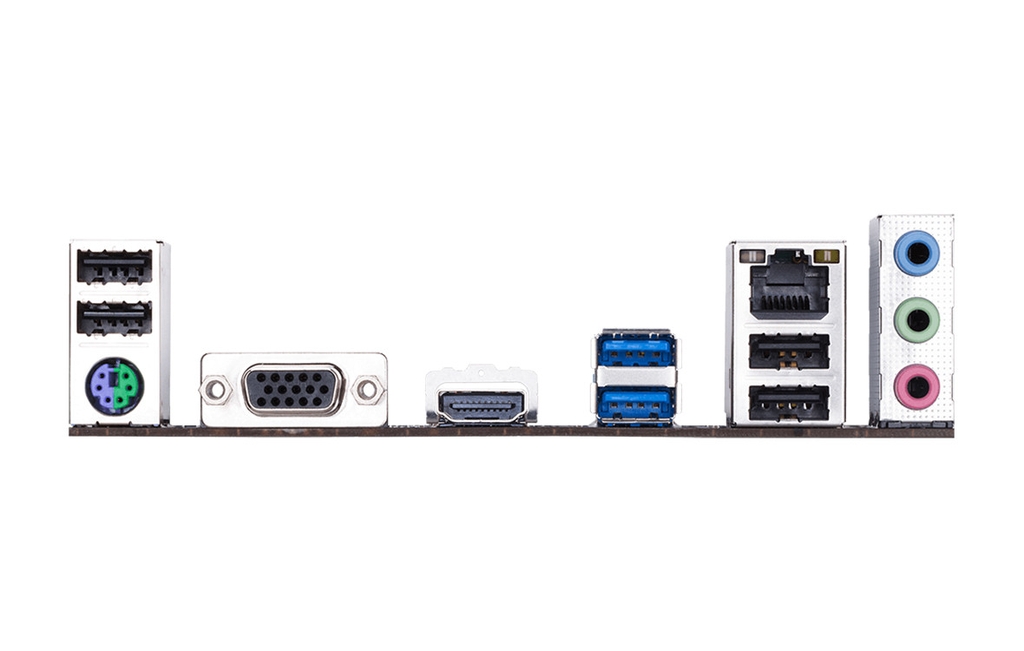

Cổng kết nối (Back Panel)

1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x HDMI port
2 x USB 3.1 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

LAN / Wireless

Realtek^® GbE LAN chip (10/100/1000 Mbit)

Kích cỡ

Micro ATX Form Factor
22.6cm x 17.4cm
